Overview
Automated dual-station visual recognition laser marking system for non-fixtured, randomly placed small electronic parts and medical components.
Key Advantages
This equipment incorporates advanced industrial-grade optics and heavy-duty mechanical engineering, offering the following key advantages:
360-Degree Random Placement Marking: High-resolution coaxial vision camera automatically recognizes part orientation and marks with exact alignment
Dual-Station Alternate Processing: Operator loads station B while laser marks station A, achieving nearly 100% laser uptime and zero idle waiting
Intelligent Defect & Misplacement Rejection: Camera detects defective or incorrect components and skips marking automatically
Customizable Parts Feeder Integration: Readily connects to bowl feeders, blister trays, and pick-and-place robots

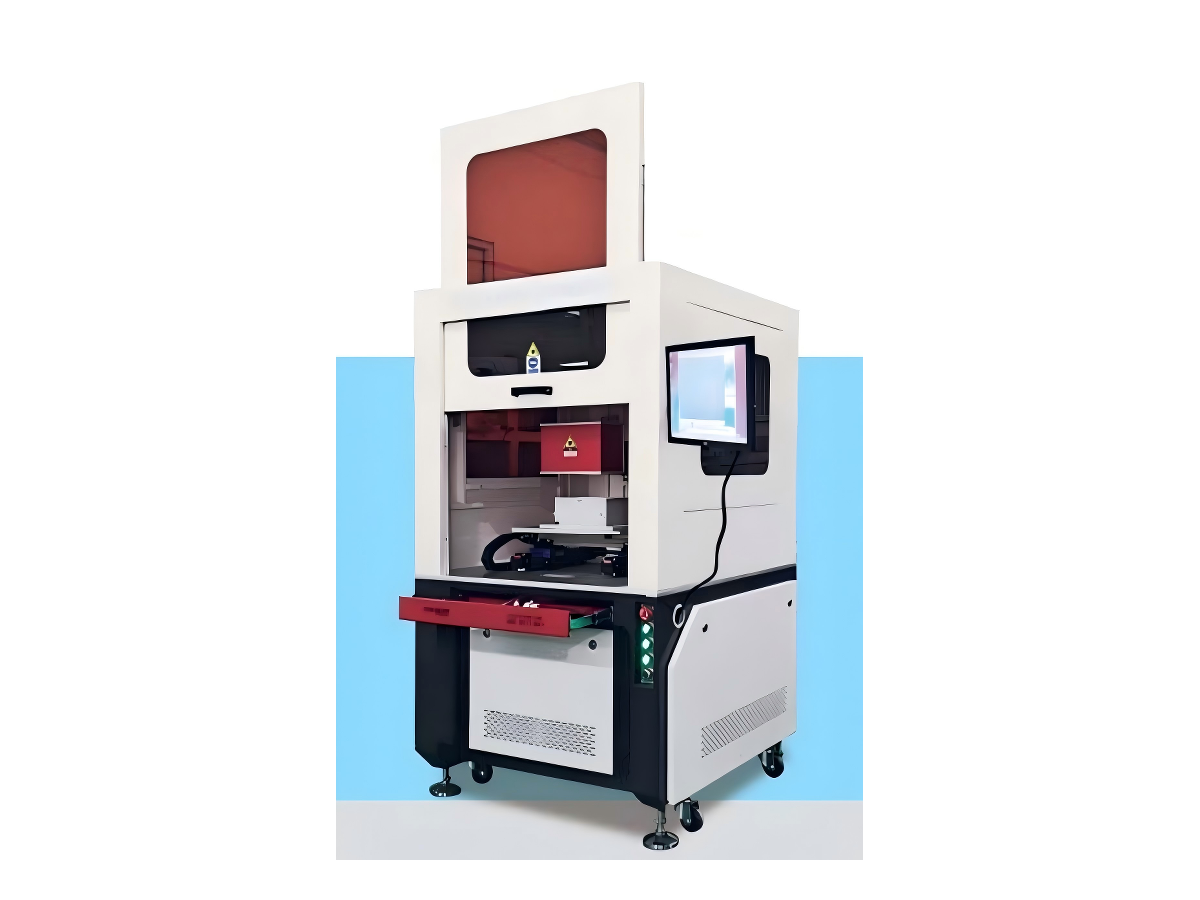

[Factory Live] CX-HV Dual-Station Vision Positioning Laser Marking Machine Industrial Laser System
Sample Gallery
High-precision test samples processed by this machine:
Ceramic Substrate Micro-Hole Array Precision Drilling
Uniform hole diameter distribution, perpendicular cross-section, zero micro-cracks.

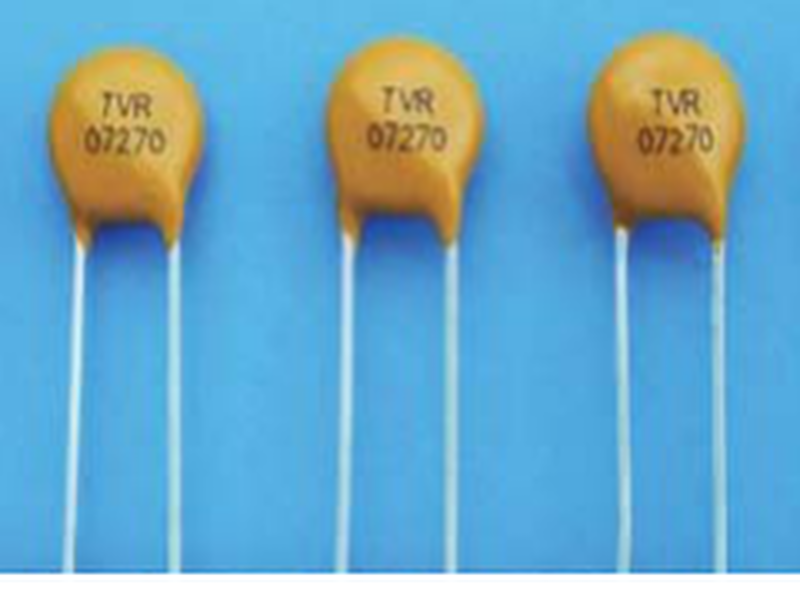

Aluminum Nitride (AlN) Substrate Contour Micro-Cutting
Micron-level cut tolerances with zero thermal stress on sensitive electronic components.
Electronic Ceramic Component Scribing & Dicing
High-contrast uniform scribe lines with micro-controlled groove depth.
Semiconductor Ceramic Substrate Precision Sectioning
Ultra-smooth cut face satisfying strict high-frequency electrical isolation requirements.
Technical Specifications
* Note: Parameters listed are standard factory configurations. Custom engineering and automated production line integrations are available upon request.
Applicable Materials & Industries
❖ Applicable Materials
Electronic Connectors & IC Chips Medical Glucose Meters & Syringes USB Plugs & Phone Accessories Precision Plastic Gears Metal Fasteners & Pins
❖ Target Industries
3C Consumer Electronics Assembly Medical Diagnostic Devices Automotive Sensor Manufacturing High-Volume Fastener Marking Precision Injection Molding
Request a Quote & Testing
Schedule Free Sample Testing and Engineering Consultation for CX-HV Dual-Station Vision Positioning Laser Marking Machine
Our industrial laser application laboratory is equipped with high-magnification optical inspection instruments. We provide customized microscopic edge analysis reports, cycle time estimates, and competitive turnkey equipment quotes within 24 hours.
